Equipment Attachments

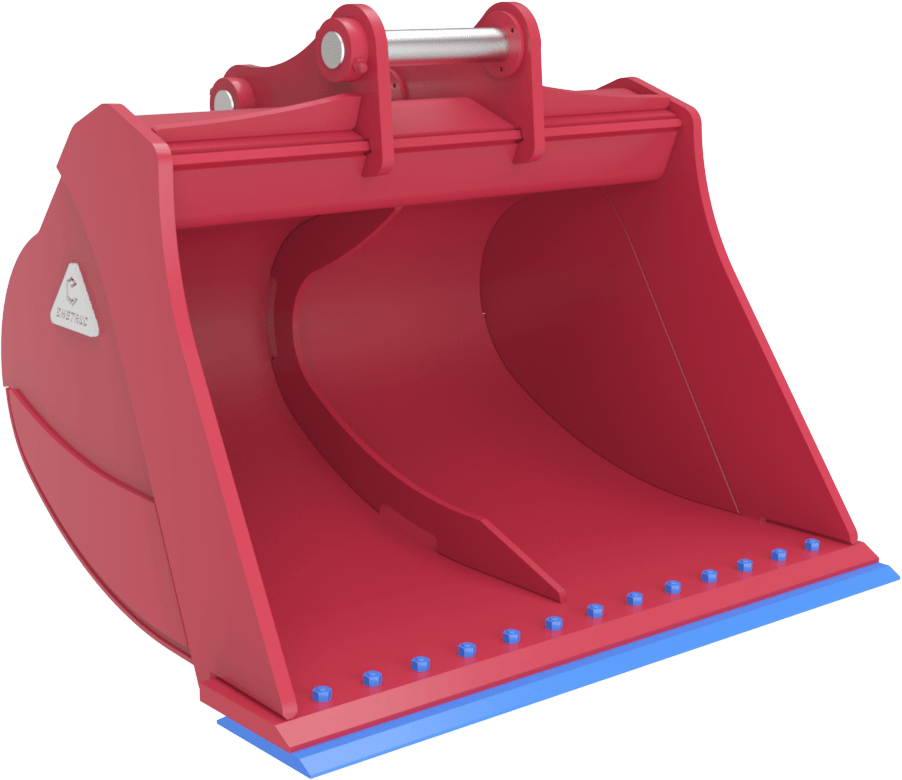

Construction excavatorHigh capacity ditching bucket

Enstruc® High Capacity Ditching Buckets are designed with a larger capacity than standard ditching buckets to handle greater amounts of materials in less time.

They are well-suited for tasks such as cleaning ditches, grading, and aggregate work.

Size options

Key Features

Enhanced capacity to move more material
Tapered sidewalls for easy loading & dumping
Strengthened top beam for bigger loads
Drainage holes for working in wet environments
The central rib enhances strength and rigidity
Equipped with HB450 reversible cutting edge
HB400 full underside abrasion wear liner
HB400 wear-resistant lower kick plates

Quick Contact

Sending...

Uploading Files

Field is required

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Enstruc Wear Solutions | Construction excavator high capacity ditching bucket 0

Enstruc Wear Solutions | Construction excavator high capacity ditching bucket 2

Enstruc Wear Solutions | Construction excavator high capacity ditching bucket 3

Enstruc Wear Solutions | Construction excavator high capacity ditching bucket 4

Enstruc Wear Solutions | Construction excavator high capacity ditching bucket 5

Enstruc Wear Solutions | Construction excavator high capacity ditching bucket 6

Specifications and sizes

View DataHide Data

Category	Part Number	Machine Class		Width		Capacity		Weight		BOCE
Category100	Part NumberHCD1015E42	Machine Class24,000 – 33,000 lbs	10 – 15 tonne	Width42 ”	1067 mm	Capacity0.74 yd3	0.57 m3	Weight920 lbs	417 kg	BOCEDouble Bevel
Category100	Part NumberHCD1015E48	Machine Class24,000 – 33,000 lbs	10 – 15 tonne	Width48 ”	1219 mm	Capacity0.87 yd3	0.66 m3	Weight1095 lbs	497 kg	BOCEDouble Bevel
Category100	Part NumberHCD1015E54	Machine Class24,000 – 33,000 lbs	10 – 15 tonne	Width54 ”	1372 mm	Capacity0.99 yd3	0.75 m3	Weight1105 lbs	501 kg	BOCEDouble Bevel
Category100	Part NumberHCD1015E60	Machine Class24,000 – 33,000 lbs	10 – 15 tonne	Width60 ”	1524 mm	Capacity1.11 yd3	0.85 m3	Weight1190 lbs	540 kg	BOCEDouble Bevel
Category150	Part NumberHCD1520E42	Machine Class33,000 – 45,000 lbs	15 – 20 tonne	Width42 ”	1067 mm	Capacity0.92 yd3	0.70 m3	Weight1165 lbs	528 kg	BOCEDouble Bevel
Category150	Part NumberHCD1520E48	Machine Class33,000 – 45,000 lbs	15 – 20 tonne	Width48 ”	1219 mm	Capacity1.07 yd3	0.82 m3	Weight1265 lbs	574 kg	BOCEDouble Bevel
Category150	Part NumberHCD1520E54	Machine Class33,000 – 45,000 lbs	15 – 20 tonne	Width54 ”	1372 mm	Capacity1.23 yd3	0.94 m3	Weight1365 lbs	619 kg	BOCEDouble Bevel
Category150	Part NumberHCD1520E60	Machine Class33,000 – 45,000 lbs	15 – 20 tonne	Width60 ”	1524 mm	Capacity1.38 yd3	1.06 m3	Weight1465 lbs	664 kg	BOCEDouble Bevel
Category200	Part NumberHCD2025E54	Machine Class45,000 – 55,000 lbs	20 – 25 tonne	Width54 ”	1372 mm	Capacity1.50 yd3	1.14 m3	Weight1410 lbs	639 kg	BOCEDouble Bevel
Category200	Part NumberHCD2025E60	Machine Class45,000 – 55,000 lbs	20 – 25 tonne	Width60 ”	1524 mm	Capacity1.71 yd3	1.30 m3	Weight1555 lbs	705 kg	BOCEDouble Bevel
Category200	Part NumberHCD2025E66	Machine Class45,000 – 55,000 lbs	20 – 25 tonne	Width66 ”	1676 mm	Capacity1.86 yd3	1.42 m3	Weight1815 lbs	823 kg	BOCEDouble Bevel
Category200	Part NumberHCD2025E72	Machine Class45,000 – 55,000 lbs	20 – 25 tonne	Width72 ”	1829 mm	Capacity2.03 yd3	1.55 m3	Weight1940 lbs	880 kg	BOCEDouble Bevel
Category250	Part NumberHCD2530E54	Machine Class55,000 – 65,000 lbs	25 – 30 tonne	Width54 ”	1372 mm	Capacity1.98 yd3	1.51 m3	Weight2105 lbs	955 kg	BOCEDouble Bevel
Category250	Part NumberHCD2530E60	Machine Class55,000 – 65,000 lbs	25 – 30 tonne	Width60 ”	1524 mm	Capacity2.23 yd3	1.70 m3	Weight2250 lbs	1020 kg	BOCEDouble Bevel
Category250	Part NumberHCD2530E66	Machine Class55,000 – 65,000 lbs	25 – 30 tonne	Width66 ”	1676 mm	Capacity2.49 yd3	1.90 m3	Weight2395 lbs	1086 kg	BOCEDouble Bevel
Category250	Part NumberHCD2530E72	Machine Class55,000 – 65,000 lbs	25 – 30 tonne	Width72 ”	1829 mm	Capacity2.75 yd3	2.10 m3	Weight2545 lbs	1154 kg	BOCEDouble Bevel
Category300	Part NumberHCD3040E60	Machine Class65,000 – 90,000 lbs	30 – 40 tonne	Width60 ”	1524 mm	Capacity2.51 yd3	1.92 m3	Weight2810 lbs	1274 kg	BOCEDouble Bevel
Category300	Part NumberHCD3040E66	Machine Class65,000 – 90,000 lbs	30 – 40 tonne	Width66 ”	1676 mm	Capacity2.81 yd3	2.14 m3	Weight2990 lbs	1356 kg	BOCEDouble Bevel
Category300	Part NumberHCD3040E72	Machine Class65,000 – 90,000 lbs	30 – 40 tonne	Width72 ”	1829 mm	Capacity3.10 yd3	2.37 m3	Weight3170 lbs	1438 kg	BOCEDouble Bevel
Category300	Part NumberHCD3040E84	Machine Class65,000 – 90,000 lbs	30 – 40 tonne	Width84 ”	2134 mm	Capacity3.69 yd3	2.82 m3	Weight3525 lbs	1599 kg	BOCEDouble Bevel
Category400	Part NumberHCD4052E72	Machine Class90,000 – 115,000 lbs	40 – 52 tonne	Width72 ”	1829 mm	Capacity3.77 yd3	2.88 m3	Weight4175 lbs	1893 kg	BOCEDouble Bevel
Category400	Part NumberHCD4052E78	Machine Class90,000 – 115,000 lbs	40 – 52 tonne	Width78 ”	1981 mm	Capacity4.13 yd3	3.15 m3	Weight4370 lbs	1982 kg	BOCEDouble Bevel
Category400	Part NumberHCD4052E84	Machine Class90,000 – 115,000 lbs	40 – 52 tonne	Width84 ”	2134 mm	Capacity4.49 yd3	3.43 m3	Weight4565 lbs	2070 kg	BOCEDouble Bevel

Tailored products and wear solutions for productivity challenges

Enstruc specialises in custom engineered products designed to tackle heavy industry equipment productivity and wear challenges. Our buckets, attachments, ground engaging tools and protective wear systems are designed to withstand extreme conditions, significantly reducing downtime and maintenance costs. By customising products to specific operational needs, Enstruc enhances the efficiency and longevity of heavy machinery, ensuring that equipment performs optimally in the most demanding terrain. Whether it’s through advanced steels and wear-resistant materials or precision engineered designs, our products and wear solutions empower construction and mining operations around the globe to maximise productivity while minimising the impact of wear and tear.
