Equipment Attachments

> Construction wheel loader > Buckets

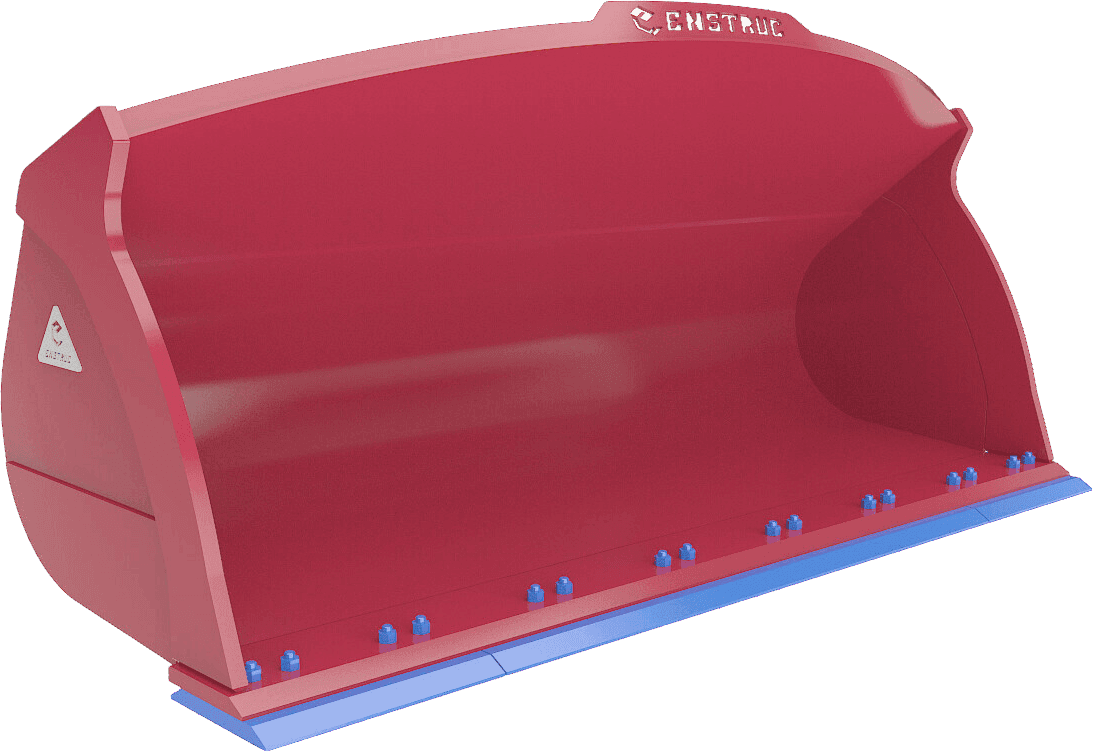

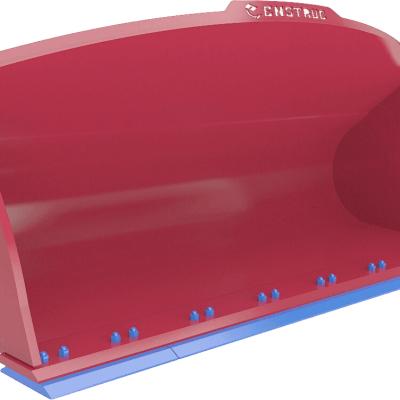

Construction wheel loader General purpose bucket

Enstruc General Purpose Buckets are built for construction-class wheel loaders up to 50 tonnes, providing reliable performance across a wide range of materials. Designed for efficient loading, stockpiling, and site work, these GP loader buckets deliver excellent fill factor, breakout force, and clean material discharge. The wheel loader buckets handle soil, sand, gravel, and light aggregates with ease, giving operators reliable productivity and long wear life in demanding civil and infrastructure applications.

Key Features

Optimised bucket design ensures smooth filling and fast material release
Reinforced structure adds strength and stability under heavy loads
Hardened, replaceable cutting edge delivers clean penetration and reduced wear
Balanced geometry improves fuel efficiency and machine performance
Available for 10-50 tonne wheel loaders from all major OEMs
Suitable for earthmoving, backfilling, site preparation, and loading work
Optional wear protection packages to extend bucket service life
OEM loader pickup guarantees accurate fitment and consistent breakout force

Get a Quote

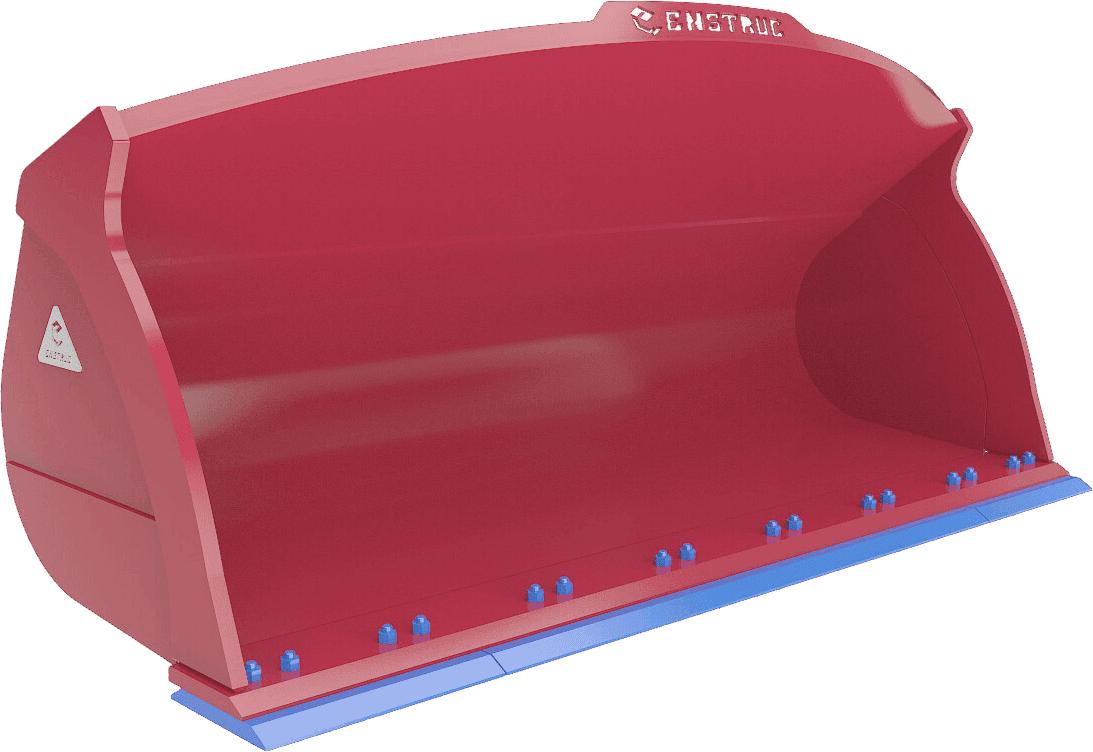

Construction wheel loader general purpose bucket | Enstruc Wear Solutions

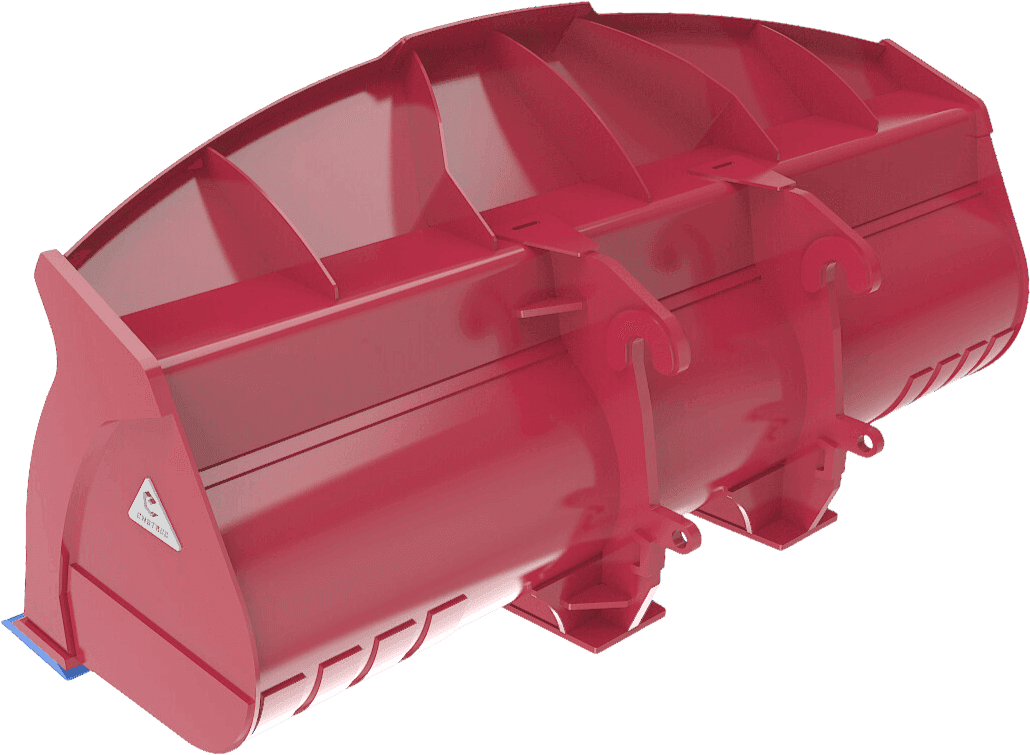

Rear view of front loader bucket showing beam reinforcements and mounting ears

Specifications and sizes

View DataHide Data

Category	Part Number	Machine Class		Width		Capacity		Weight		BOCE
Category200	Part Number200WL200GP100	Machine Class2.00 - 2.50 yd3	1.53 - 1.91 m3	Width100 ''	2540 mm	Capacity2.00 yd3	1.53 m3	Weight1860 lbs	844 kg	BOCEDouble Bevel
Category200	Part Number200WL225GP100	Machine Class2.00 - 2.50 yd3	1.53 - 1.91 m3	Width100 ''	2540 mm	Capacity2.25 yd3	1.72 m3	Weight1910 lbs	866 kg	BOCEDouble Bevel
Category200	Part Number200WL250GP100	Machine Class2.00 - 2.50 yd3	1.53 - 1.91 m3	Width100 ''	2540 mm	Capacity2.50 yd3	1.91 m3	Weight1960 lbs	889 kg	BOCEDouble Bevel
Category200	Part Number200WL275GP100	Machine Class2.00 - 2.50 yd3	1.53 - 1.91 m3	Width100 ''	2540 mm	Capacity2.75 yd3	2.10 m3	Weight2185 lbs	991 kg	BOCEDouble Bevel
Category200	Part Number275WL250GP107	Machine Class2.75 - 3.00 yd3	2.10 - 2.29 m3	Width107 ''	2718 mm	Capacity2.50 yd3	1.91 m3	Weight2155 lbs	977 kg	BOCEDouble Bevel
Category200	Part Number275WL275GP107	Machine Class2.75 - 3.00 yd3	2.10 - 2.29 m3	Width107 ''	2718 mm	Capacity2.75 yd3	2.10 m3	Weight2305 lbs	1045 kg	BOCEDouble Bevel
Category200	Part Number275WL300GP107	Machine Class2.75 - 3.00 yd3	2.10 - 2.29 m3	Width107 ''	2718 mm	Capacity3.00 yd3	2.29 m3	Weight2455 lbs	1113 kg	BOCEDouble Bevel
Category200	Part Number275WL325GP107	Machine Class2.75 - 3.00 yd3	2.10 - 2.29 m3	Width107 ''	2718 mm	Capacity3.25 yd3	2.48 m3	Weight2590 lbs	1175 kg	BOCEDouble Bevel
Category200	Part Number275WL350GP107	Machine Class2.75 - 3.00 yd3	2.10 - 2.29 m3	Width107 ''	2718 mm	Capacity3.50 yd3	2.68 m3	Weight2655 lbs	1204 kg	BOCEDouble Bevel
Category300	Part Number325WL300GP114	Machine Class3.25 - 3.50 yd3	2.48 - 2.68 m3	Width113 ''	2870 mm	Capacity3.00 yd3	2.29 m3	Weight2910 lbs	1320 kg	BOCEDouble Bevel
Category300	Part Number325WL325GP114	Machine Class3.25 - 3.50 yd3	2.48 - 2.68 m3	Width113 ''	2870 mm	Capacity3.25 yd3	2.48 m3	Weight2990 lbs	1356 kg	BOCEDouble Bevel
Category300	Part Number325WL350GP114	Machine Class3.25 - 3.50 yd3	2.48 - 2.68 m3	Width113 ''	2870 mm	Capacity3.50 yd3	2.68 m3	Weight3070 lbs	1392 kg	BOCEDouble Bevel
Category300	Part Number325WL375GP114	Machine Class3.25 - 3.50 yd3	2.48 - 2.68 m3	Width113 ''	2870 mm	Capacity3.75 yd3	2.87 m3	Weight		BOCEDouble Bevel
Category300	Part Number325WL400GP114	Machine Class3.25 - 3.50 yd3	2.48 - 2.68 m3	Width113 ''	2870 mm	Capacity4.00 yd3	3.06 m3	Weight3365 lbs	1526 kg	BOCEDouble Bevel
Category300	Part Number375WL300GP125	Machine Class3.75 - 4.50 yd3	2.88 - 3.44 m3	Width124 ''	3150 mm	Capacity3.00 yd3	2.29 m3	Weight3580 lbs	1624 kg	BOCEDouble Bevel
Category300	Part Number375WL350GP125	Machine Class3.75 - 4.50 yd3	2.88 - 3.44 m3	Width124 ''	3150 mm	Capacity3.50 yd3	2.68 m3	Weight3695 lbs	1676 kg	BOCEDouble Bevel
Category300	Part Number375WL375GP125	Machine Class3.75 - 4.50 yd3	2.88 - 3.44 m3	Width124 ''	3150 mm	Capacity3.75 yd3	2.87 m3	Weight		BOCEDouble Bevel
Category300	Part Number375WL400GP125	Machine Class3.75 - 4.50 yd3	2.88 - 3.44 m3	Width124 ''	3150 mm	Capacity4.00 yd3	3.06 m3	Weight3955 lbs	1794 kg	BOCEDouble Bevel
Category300	Part Number375WL425GP125	Machine Class3.75 - 4.50 yd3	2.88 - 3.44 m3	Width124 ''	3150 mm	Capacity4.25 yd3	3.25 m3	Weight4085 lbs	1853 kg	BOCEDouble Bevel
Category300	Part Number375WL450GP125	Machine Class3.75 - 4.50 yd3	2.88 - 3.44 m3	Width124 ''	3150 mm	Capacity4.50 yd3	3.44 m3	Weight4115 lbs	1866 kg	BOCEDouble Bevel
Category300	Part Number375WL475GP125	Machine Class3.75 - 4.50 yd3	2.88 - 3.44 m3	Width124 ''	3150 mm	Capacity4.75 yd3	3.63 m3	Weight4320 lbs	1959 kg	BOCEDouble Bevel
Category300	Part Number375WL500GP125	Machine Class3.75 - 4.50 yd3	2.88 - 3.44 m3	Width124 ''	3150 mm	Capacity5.00 yd3	3.82 m3	Weight		BOCEDouble Bevel
Category300	Part Number375WL550GP125	Machine Class3.75 - 4.50 yd3	2.88 - 3.44 m3	Width124 ''	3150 mm	Capacity5.50 yd3	4.20 m3	Weight		BOCEDouble Bevel
Category300	Part Number375WL600GP125	Machine Class3.75 - 4.50 yd3	2.88 - 3.44 m3	Width124 ''	3150 mm	Capacity6.00 yd3	4.59 m3	Weight		BOCEDouble Bevel
Category500	Part Number500WL500GP134	Machine Class5.00 - 6.25 yd3	3.82 - 4.78 m3	Width132 ''	3404 mm	Capacity5.00 yd3	3.82 m3	Weight5750 lbs	2608 kg	BOCEDouble Bevel
Category500	Part Number500WL525GP134	Machine Class5.00 - 6.25 yd3	3.82 - 4.78 m3	Width132 ''	3404 mm	Capacity5.25 yd3	4.01 m3	Weight5850 lbs	2653 kg	BOCEDouble Bevel
Category500	Part Number500WL550GP134	Machine Class5.00 - 6.25 yd3	3.82 - 4.78 m3	Width132 ''	3404 mm	Capacity5.50 yd3	4.20 m3	Weight6105 lbs	2769 kg	BOCEDouble Bevel
Category500	Part Number500WL600GP134	Machine Class5.00 - 6.25 yd3	3.82 - 4.78 m3	Width132 ''	3404 mm	Capacity6.00 yd3	4.59 m3	Weight6050 lbs	2744 kg	BOCEDouble Bevel
Category500	Part Number500WL625GP134	Machine Class5.00 - 6.25 yd3	3.82 - 4.78 m3	Width132 ''	3404 mm	Capacity6.25 yd3	4.78 m3	Weight6150 lbs	2789 kg	BOCEDouble Bevel
Category500	Part Number500WL650GP134	Machine Class5.00 - 6.25 yd3	3.82 - 4.78 m3	Width132 ''	3404 mm	Capacity6.50 yd3	4.97 m3	Weight6250 lbs	2834 kg	BOCEDouble Bevel
Category500	Part Number500WL700GP134	Machine Class5.00 - 6.25 yd3	3.82 - 4.78 m3	Width132 ''	3404 mm	Capacity7.00 yd3	5.35 m3	Weight		BOCEDouble Bevel
Category600	Part Number650WL600GP146	Machine Class6.50 - 7.50 yd3	4.96 - 5.73 m3	Width144 ''	3708 mm	Capacity6.00 yd3	4.59 m3	Weight6650 lbs	3016 kg	BOCEDouble Bevel
Category600	Part Number650WL650GP146	Machine Class6.50 - 7.50 yd3	4.96 - 5.73 m3	Width144 ''	3708 mm	Capacity6.50 yd3	4.97 m3	Weight6900 lbs	3129 kg	BOCEDouble Bevel
Category600	Part Number650WL700GP146	Machine Class6.50 - 7.50 yd3	4.96 - 5.73 m3	Width144 ''	3708 mm	Capacity7.00 yd3	5.35 m3	Weight7400 lbs	3356 kg	BOCEDouble Bevel
Category600	Part Number650WL750GP146	Machine Class6.50 - 7.50 yd3	4.96 - 5.73 m3	Width144 ''	3708 mm	Capacity7.50 yd3	5.73 m3	Weight7700 lbs	3492 kg	BOCEDouble Bevel
Category600	Part Number650WL800GP146	Machine Class6.50 - 7.50 yd3	4.96 - 5.73 m3	Width144 ''	3708 mm	Capacity8.00 yd3	6.12 m3	Weight7980 lbs	3619 kg	BOCEDouble Bevel

Frequently Asked Questions

The General Purpose Loader Bucket is designed for soil, clay, sand, and light aggregate handling on civil and construction projects.

Enstruc's General Purpose Bucket is designed for 10-50 tonne wheel loaders. This loader bucket is compatible with Cat 926, 930, 938, 950, 962, 966, 972, 980, 982, 986; Case 421G, 521G, 621G, 651G, 721G, 821G, 921G, 1021G, 1121G; Hitachi ZW160, ZW180, ZW220, ZW250, ZW310; Hyundai HL930, HL940, HL955, HL960, HL970, HL975, HL980, HL985; Komatsu WA200, WA270, WA320, WA380, WA470, WA475, WA480, WA485, WA500; Liebherr L546, L550, L556, L566, L576, L580, L586; Volvo L60, L70, L90, L110, L120, L150, L180, L220, L260, L350; and other similar models. For bigger wheel loaders, see our Quarry Loader Buckets and Mining Loader Buckets.

For highly abrasive or rocky applications, we recommend our Heavy Duty Bucket or Rock Bucket.

Yes, we offer various grades of loader cutting edges, side blade protection, heel protection, and additional wear liners to suit your working conditions.

Our construction loader bucket capacity ranges from 1.5 m³ to 6.1 m³, with widths from 2,540 mm to 3,708 mm, and are made to match the machine class and operating requirements.

Talk to our team

Tell us your loader model, working material, and site conditions. We’ll confirm the correct loader bucket configuration and provide a quote.

Construction wheel loader General purpose bucket

Key Features

Get a Quote

Specifications and sizes

Frequently Asked Questions

Talk to our team

Related Products

heavy duty bucket

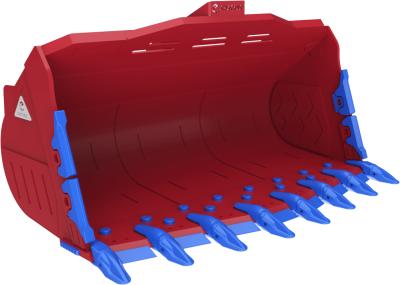

heavy duty rock bucket

extreme rock bucket

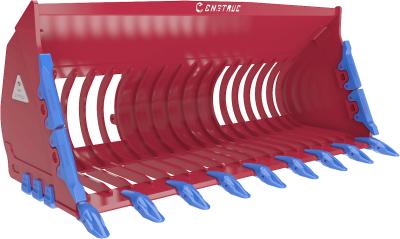

skeleton bucket

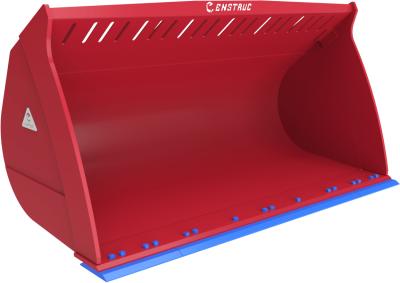

light material bucket
