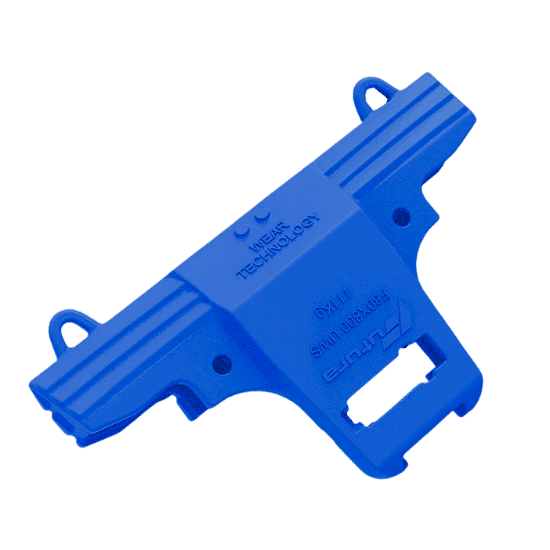

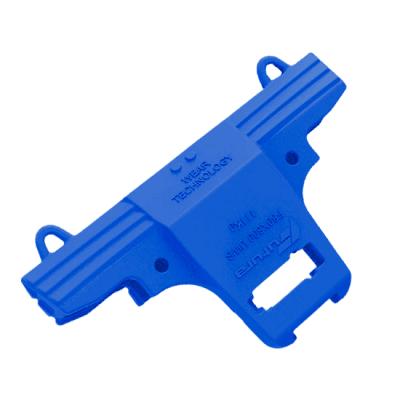

Mining wheel loaderFutura wing shrouds

Futura® Miner Wing Shrouds are designed to protect and extend the wear life of quarry and mining wheel loader bucket sidewalls.

The upper and lower wing shroud system provides additional durability against severe abrasion and impact by protecting the cheek plates and sides of the bucket.

While reducing loader bucket maintenance, they also enhance penetration and material loading.

Size options

Key Features

Mining wing shroud to protect the sidewalls
2 lock options: Hammerless & standard pin
Complete upper & lower wing shroud system
High productivity extreme impact & abrasion
Enhanced penetration & material handling
Advanced metallurgy and heat treatment
Compatible with Esco and O&K wing shrouds
Custom mining loader wing shroud designs

Quick Contact

Sending...

Uploading Files

Field is required

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Enstruc Wear Solutions | Mining wheel loader Futura wing shrouds 0

Enstruc Wear Solutions | Mining wheel loader Futura wing shrouds 1

Enstruc Wear Solutions | Mining wheel loader Futura wing shrouds 2

Enstruc Wear Solutions | Mining wheel loader Futura wing shrouds 3

Enstruc Wear Solutions | Mining wheel loader Futura wing shrouds 4

Enstruc Wear Solutions | Mining wheel loader Futura wing shrouds 5

Enstruc Wear Solutions | Mining wheel loader Futura wing shrouds 6

Enstruc Wear Solutions | Mining wheel loader Futura wing shrouds 7

Specifications and sizes

View DataHide Data

Shroud Style	Position	Part Number	Alternative Part	Sidewall		Weight
Shroud StyleMechanical	PositionUpper	Part NumberF40X440 UWS	Alternative PartTAW40X440-1A	Sidewall1.57 ”	40 mm	Weight58 lbs	27 kg
Shroud StyleMechanical	PositionUpper	Part NumberF40X560 UWS	Alternative PartTAW40X560-1	Sidewall1.57 ”	40 mm	Weight117 lbs	53 kg
Shroud StyleMechanical	PositionUpper	Part NumberF40X600 UWS	Alternative PartTAW40X600-1	Sidewall1.57 ”	40 mm	Weight75 lbs	34 kg
Shroud StyleMechanical	PositionUpper	Part NumberF50X505 UWS	Alternative PartTAW50X505-2	Sidewall1.97 ”	50 mm	Weight110 lbs	50 kg
Shroud StyleMechanical	PositionUpper	Part NumberF50X505B UWS	Alternative PartTAW50X505-1A	Sidewall1.97 ”	50 mm	Weight71 lbs	32 kg
Shroud StyleMechanical	PositionUpper	Part NumberF50X630 UWS	Alternative PartTAW50X630-1A	Sidewall1.97 ”	50 mm	Weight108 lbs	49 kg
Shroud StyleMechanical	PositionUpper	Part NumberF50X655 UWS	Alternative PartTBW50X655-1	Sidewall1.97 ”	50 mm	Weight192 lbs	87 kg
Shroud StyleMechanical	PositionUpper	Part NumberF50X800 UWS	Alternative PartTAW50X800-1A	Sidewall1.97 ”	50 mm	Weight163 lbs	74 kg
Shroud StyleMechanical	PositionUpper	Part NumberF65X800 UWS	Alternative PartTAW65X800-1B	Sidewall2.56 ”	65 mm	Weight183 lbs	83 kg
Shroud StyleMechanical	PositionUpper	Part NumberF75X545 UWS	Alternative PartTBW75X545-1A	Sidewall2.95 ”	75 mm	Weight115 lbs	52 kg
Shroud StyleMechanical	PositionUpper	Part NumberF75X655 UWS	Alternative PartTBW75X655-1	Sidewall2.95 ”	75 mm	Weight220 lbs	100 kg
Shroud StyleMechanical	PositionUpper	Part NumberF80X800 UWS	Alternative PartTBW80X800-1A	Sidewall3.15 ”	80 mm	Weight245 lbs	111 kg
Shroud StyleMechanical	PositionUpper	Part NumberF90X495 UWS	Alternative PartTBW90X495-1	Sidewall3.54 ”	90 mm	Weight148 lbs	67 kg
Shroud StyleMechanical	PositionUpper	Part NumberF90X855 UWS	Alternative PartTBW90X855-1A	Sidewall3.54 ”	90 mm	Weight518 lbs	235 kg
Shroud StyleMechanical	PositionUpper	Part NumberF100X965 UWS	Alternative PartTBW100X965-1	Sidewall3.94 ”	100 mm	Weight351 lbs	159 kg
Shroud StyleMechanical	PositionUpper	Part NumberF120X760 UWS	Alternative PartTAW120X760-1	Sidewall4.72 ”	120 mm	Weight364 lbs	165 kg
Shroud StyleMechanical	PositionUpper	Part NumberF120X760A UWS	Alternative PartTBW120X760-1A	Sidewall4.72 ”	120 mm	Weight428 lbs	194 kg
Shroud StyleMechanical	PositionUpper	Part NumberF140X800 UWS	Alternative PartTBW140X800-1	Sidewall5.51 ”	140 mm	Weight525 lbs	238 kg
Shroud Style	Position	Part Number	Alternative Part	Sidewall		Weight
Shroud StyleMechanical	PositionLower	Part NumberF50 LWS	Alternative PartTAW50-1	Sidewall1.97 ”	50 mm	Weight152 lbs	69 kg
Shroud StyleMechanical	PositionLower	Part NumberF65 LWS	Alternative PartTAW65-1	Sidewall2.56 ”	65 mm	Weight168 lbs	76 kg
Shroud StyleMechanical	PositionLower	Part NumberF75 LWS	Alternative PartTAW75-1	Sidewall2.95 ”	75 mm	Weight181 lbs	82 kg
Shroud StyleMechanical	PositionLower	Part NumberF90 LWS	Alternative PartTAW90-1	Sidewall3.54 ”	90 mm	Weight187 lbs	85 kg
Shroud StyleMechanical	PositionLower	Part NumberF115 LWS	Alternative PartTAW115-1	Sidewall4.53 ”	115 mm	Weight201 lbs	91 kg
Shroud StyleMechanical	PositionLower	Part NumberF135 LWS	Alternative PartTAW135-1	Sidewall5.31 ”	135 mm	Weight249 lbs	113 kg
Shroud StyleMechanical	PositionLower	Part NumberF160 LWS	Alternative PartTAW160-1	Sidewall6.30 ”	160 mm	Weight432 lbs	196 kg
Shroud StyleMechanical	PositionLower	Part NumberF165 LWS-RH	Alternative PartTBW165-1R	Sidewall6.50 ”	165 mm	Weight428 lbs	194 kg
Shroud StyleMechanical	PositionLower	Part NumberF165 LWS-LH	Alternative PartTBW165-1L	Sidewall6.50 ”	165 mm	Weight428 lbs	194 kg
