Quarry Excavator Heavy duty ultra bucket

Enstruc delivers a range of ultra duty quarry excavator buckets (HDU) designed specifically for excavators in the 52 to 125+ tonne class. Engineered for the toughest quarry conditions, these buckets provide unmatched durability, wear resistance, and strength to handle the most abrasive rock, fragmented stone, and heavy-duty material handling applications.

Constructed from advanced abrasion-resistant steel and reinforced with heavy-duty structural components, our ultra duty buckets feature an aggressive lip and wing system, robust heel shrouds, and thick internal and external wear packages to maximise bucket life and maintain peak performance. Designed with a deep profile and reinforced sidewalls, these buckets excel in extreme quarry environments.

Available in various sizes and configurations, Enstruc ultra duty buckets fit all major OEM quarry excavators.

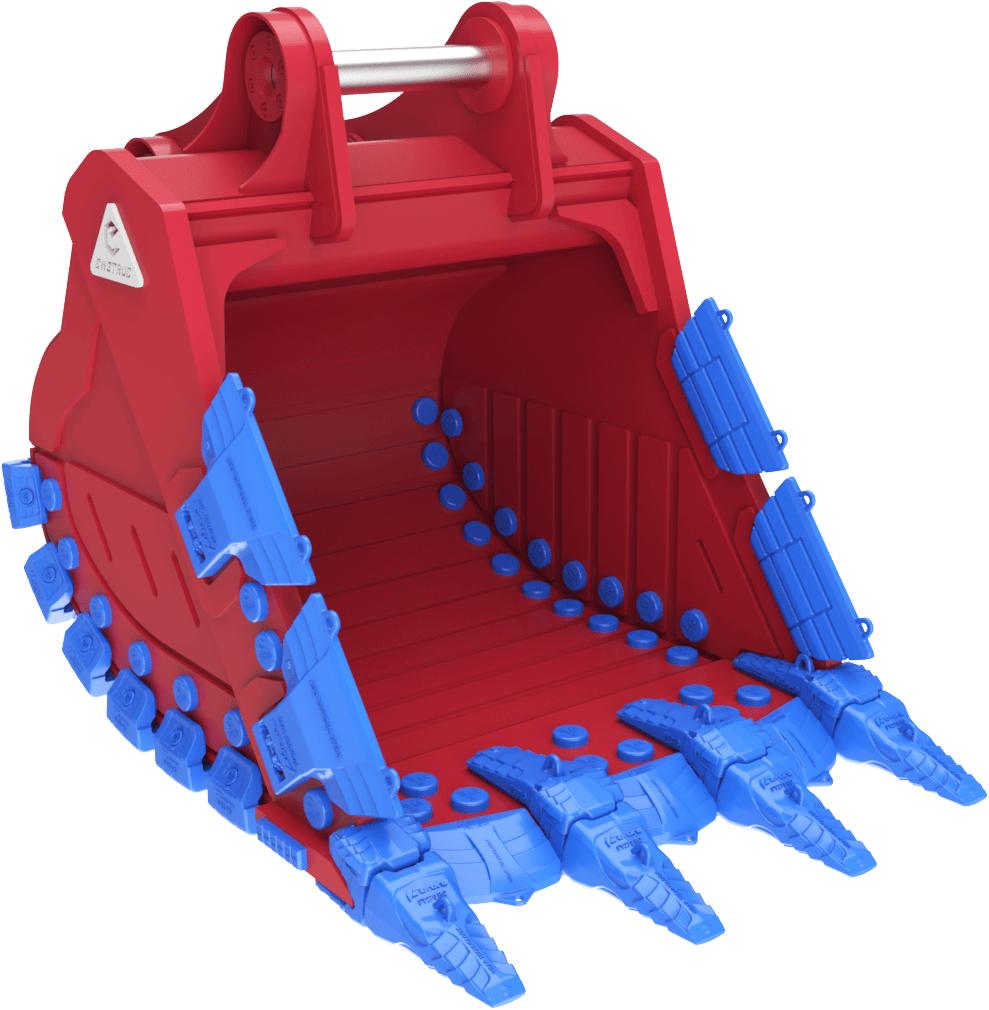

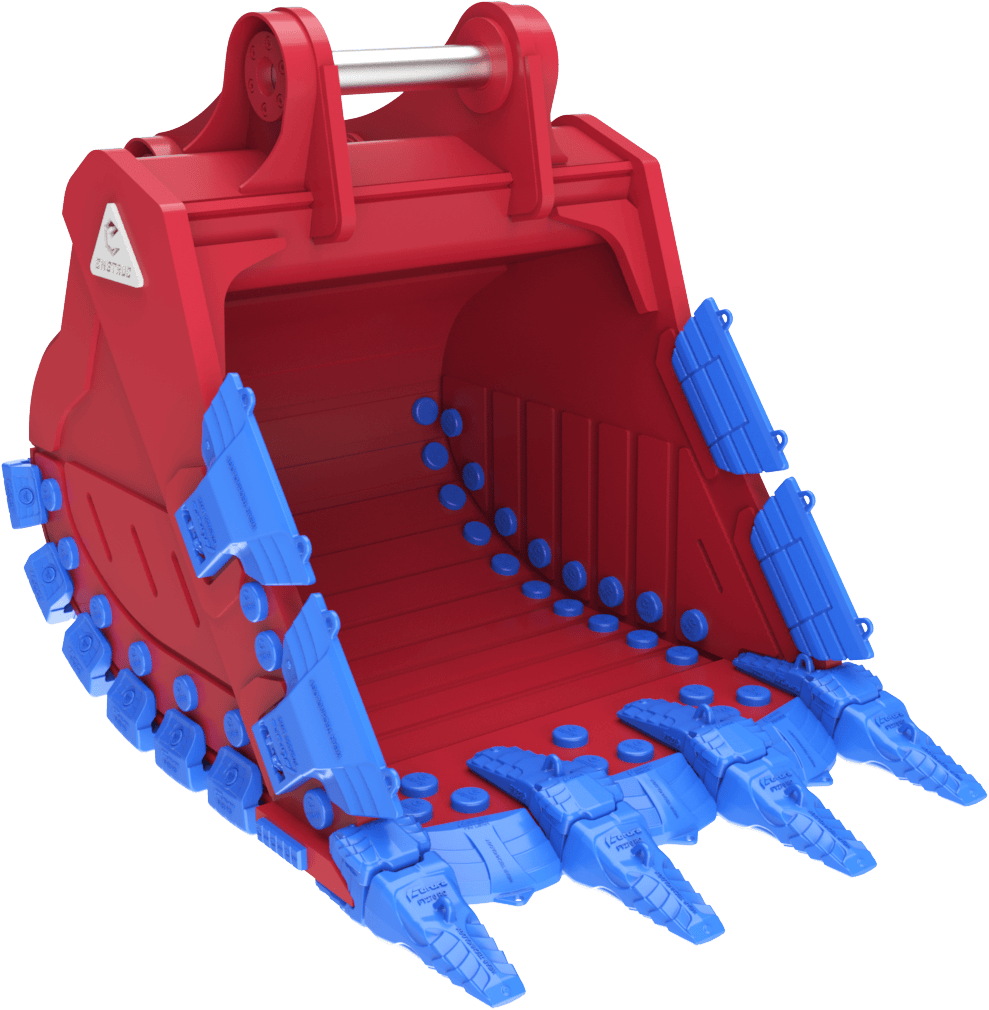

Enstruc ultra duty quarry excavator bucket engineered for maximum durability in abrasive rock conditions

Key Features

Built for quarry excavators up to 125t working in extreme rock & abrasive conditions
Fabricated from premium abrasion-resistant steel with enhanced reinforcements
Aggressive lip and deep profile for exceptional penetration and material retention
Reinforced beam and sidewalls for increased durability & structural flex resistance
Optimised bucket design for improved fill capacity and reduced cycle times
Hammerless GET system provides easy maintenance and minimises downtime
Internal and external wear liners protect high-wear areas to extend operational life
Direct mounting system to ensure safety and reliability under heavy loads

Get a Quote

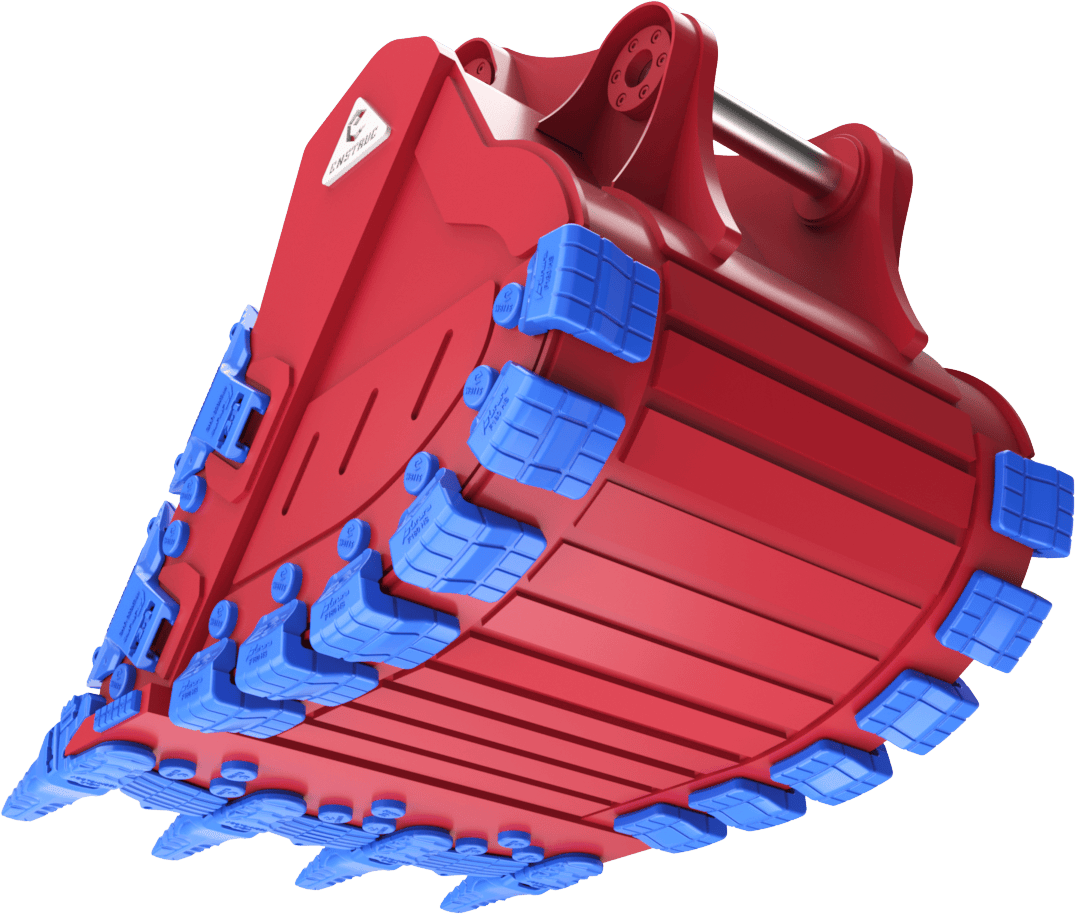

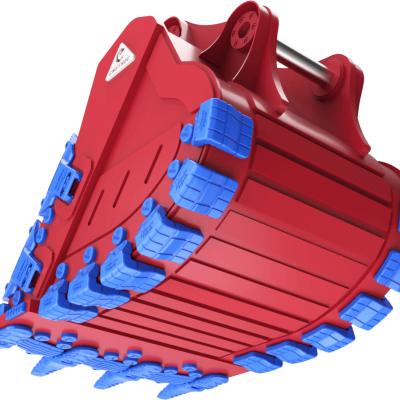

Enstruc rock bucket for quarrying designed for high-strength performance in abrasive material handling

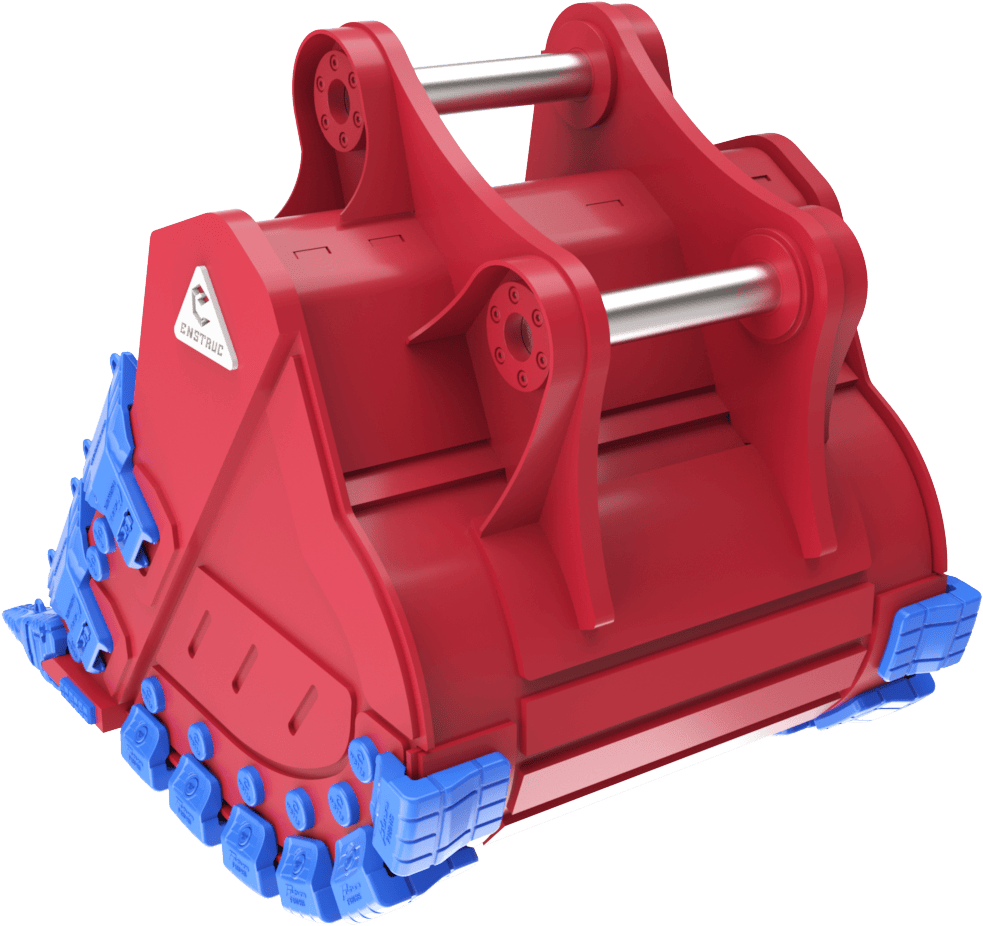

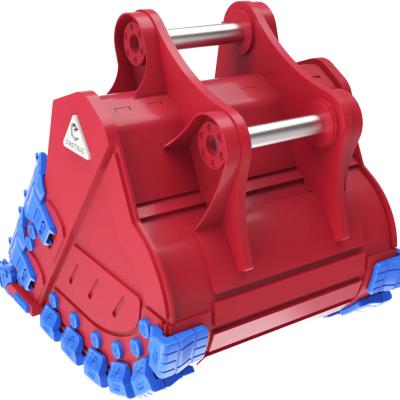

Enstruc rock bucket with advanced cast parts for superior wear resistance in quarry and mining applications

Specifications and sizes

View DataHide Data

Category	Part Number	Machine Class		Width		Capacity		Weight		Teeth
Category500	Part NumberHDU5464E54	Machine Class120,000 - 140,000 lbs	54 - 64 tonne	Width54 ''	1372 mm	Capacity3.50 yd3	2.68 m3	Weight9845 lbs	4465 kg	Teeth4
Category500	Part NumberHDU5464E60	Machine Class120,000 - 140,000 lbs	54 - 64 tonne	Width60 ''	1524 mm	Capacity4.00 yd3	3.06 m3	Weight10460 lbs	4744 kg	Teeth4
Category500	Part NumberHDU5464E72	Machine Class120,000 - 140,000 lbs	54 - 64 tonne	Width72 ''	1829 mm	Capacity4.75 yd3	3.63 m3	Weight11690 lbs	5301 kg	Teeth5
Category600	Part NumberHDU6472E60	Machine Class140,000 - 160,000 lbs	64 - 72 tonne	Width60 ''	1524 mm	Capacity4.30 yd3	3.29 m3	Weight11160 lbs	5061 kg	Teeth4
Category600	Part NumberHDU6472E66	Machine Class140,000 - 160,000 lbs	64 - 72 tonne	Width66 ''	1676 mm	Capacity4.75 yd3	3.63 m3	Weight11775 lbs	5340 kg	Teeth4
Category600	Part NumberHDU6472E72	Machine Class140,000 - 160,000 lbs	64 - 72 tonne	Width72 ''	1829 mm	Capacity5.25 yd3	4.01 m3	Weight12390 lbs	5619 kg	Teeth5
Category600	Part NumberHDU6472E84	Machine Class140,000 - 160,000 lbs	64 - 72 tonne	Width84 ''	2134 mm	Capacity6.50 yd3	4.97 m3	Weight13615 lbs	6174 kg	Teeth5
Category600	Part NumberHDU6472E96	Machine Class140,000 - 160,000 lbs	64 - 72 tonne	Width96 ''	2438 mm	Capacity8.00 yd3	6.12 m3	Weight14250 lbs	6462 kg	Teeth5
Category900	Part NumberHDU90136E60	Machine Class200,000 - 300,000 lbs	90 - 136 tonne	Width60 ''	1524 mm	Capacity6.89 yd3	5.27 m3	Weight		Teeth4
Category900	Part NumberHDU90136E72	Machine Class200,000 - 300,000 lbs	90 - 136 tonne	Width72 ''	1829 mm	Capacity7.50 yd3	5.73 m3	Weight		Teeth5
Category900	Part NumberHDU90136E84	Machine Class200,000 - 300,000 lbs	90 - 136 tonne	Width84 ''	2134 mm	Capacity9.65 yd3	7.38 m3	Weight		Teeth5
Category900	Part NumberHDU90136E96	Machine Class200,000 - 300,000 lbs	90 - 136 tonne	Width96 ''	2438 mm	Capacity10.95 yd3	8.37 m3	Weight		Teeth6

Ultra Duty Quarry Excavator Buckets – FAQ

Which excavators are compatible with Enstruc ultra duty quarry buckets?

Our buckets fit quarry excavators in the 52 to 125 tonne operating weight class. Supported OEM models include:

Caterpillar: 374, 390, 395
Komatsu: PC600, PC700, PC1250
Hitachi: ZX670, ZX690, ZX890
Volvo: EC750, EC950
Liebherr: R 956, R 966, R 970
Hyundai: HX800, HX900
Develon / Doosan: DX800LC, DX1000LC

What ground conditions are these buckets suited for?

Designed for the most demanding quarry applications, including:

Highly abrasive and fractured rock
Hard and compacted mineral deposits
Continuous heavy material loading
Impact and abrasion-intensive environments

Can I customise an ultra duty bucket for my quarry?

Yes. We provide comprehensive customisation options:

Bucket size, width, and capacity adjustments
Enhanced wear materials and thicknesses
Lip shrouds, wing shrouds, heel shrouds, and tooth systems
Fixed pin or bolt-on mounting brackets
Custom paint, fleet branding, and site-specific features

What quality assurance procedures are in place?

Our bucket manufacturing follows strict QA/QC protocols:

Certified steel sourcing and traceability
Welding inspections and dimensional checks
Non-destructive testing (NDT)
Comprehensive final inspections with documentation

Do you offer international delivery?

Yes. Enstruc exports excavator buckets worldwide with secure packaging and logistics support. We ship regularly across Australia, Asia, Europe, North and South America, Africa, and the Middle East.

Who are the typical users of these buckets?

We serve quarry operators, OEMs, equipment owners, contractors, and procurement teams globally. Full technical support and aftersales care are provided.
