Quarry Excavator Heavy duty severe bucket

Enstruc severe duty quarry excavator buckets are engineered for machines in the 52 to 125+ tonne class. Designed to dig and load in the most demanding quarry conditions, these excavator buckets deliver exceptional wear resistance, structural strength, and productivity in rock, abrasive stone, and heavy material handling applications.

Manufactured from high-strength, abrasion-resistant steels and reinforced at critical wear points, our heavy duty severe buckets feature a through hardened cutting edge and advanced ground engaging tools (GET) to provide reliable penetration and extended service life. With a deep profile and heavy-duty construction, they efficiently handle crushed rock, fragmented stone, and other challenging quarry materials and aggregates.

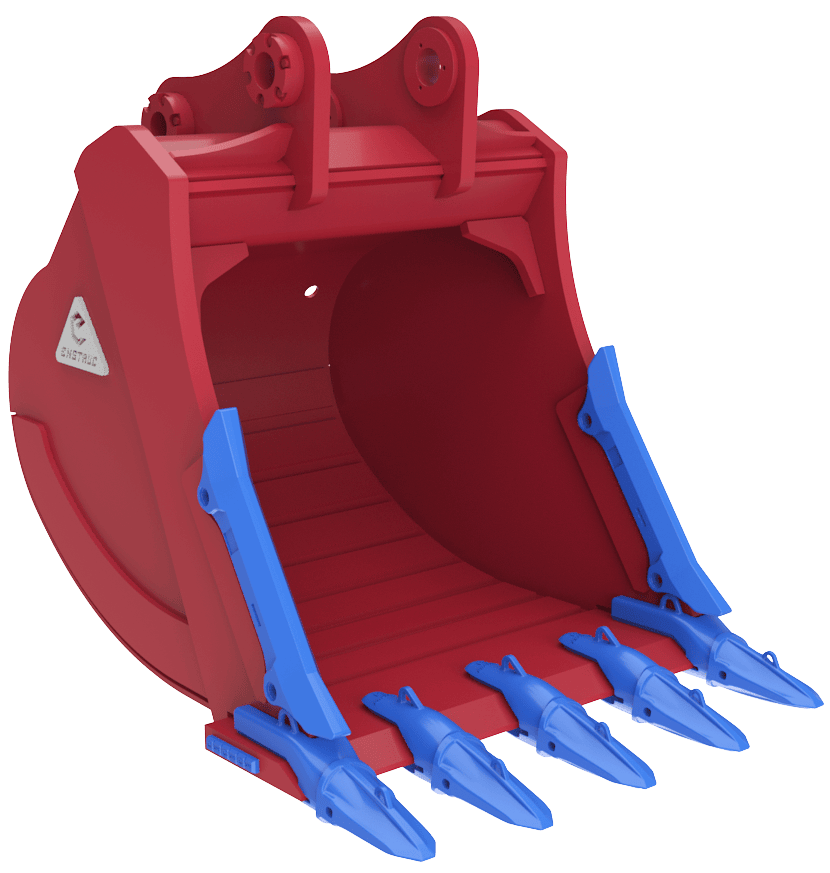

Enstruc severe duty quarry excavator bucket designed for abrasive and high-impact rock conditions

Key Features

Built for 52-125t quarry excavators operating in rock, stone, and abrasive materials
Made from reinforced, abrasion-resistant steel for maximum strength & durability
Deep profile with wear-resistant cutting edge for enhanced penetration & bucket fill
HD side plates and straddle adapters reduce flex and increase structural integrity
Replaceable wear parts and GET system simplify maintenance & reduce downtime
Available in standard and wide-body bucket designs for versatile quarry applications
Designed for fixed pin to enhance breakout and to withstand extreme loads safely
Customised wear package and tooth configurations for specific site conditions

Get a Quote

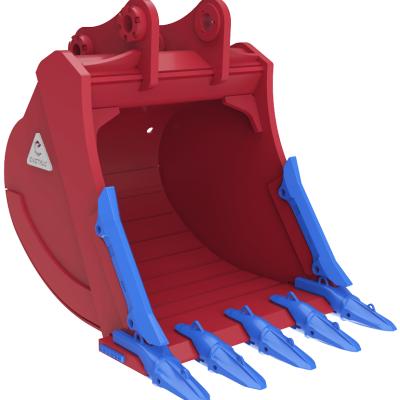

Enstruc heavy duty quarry excavator bucket built for tough rock excavation and loading

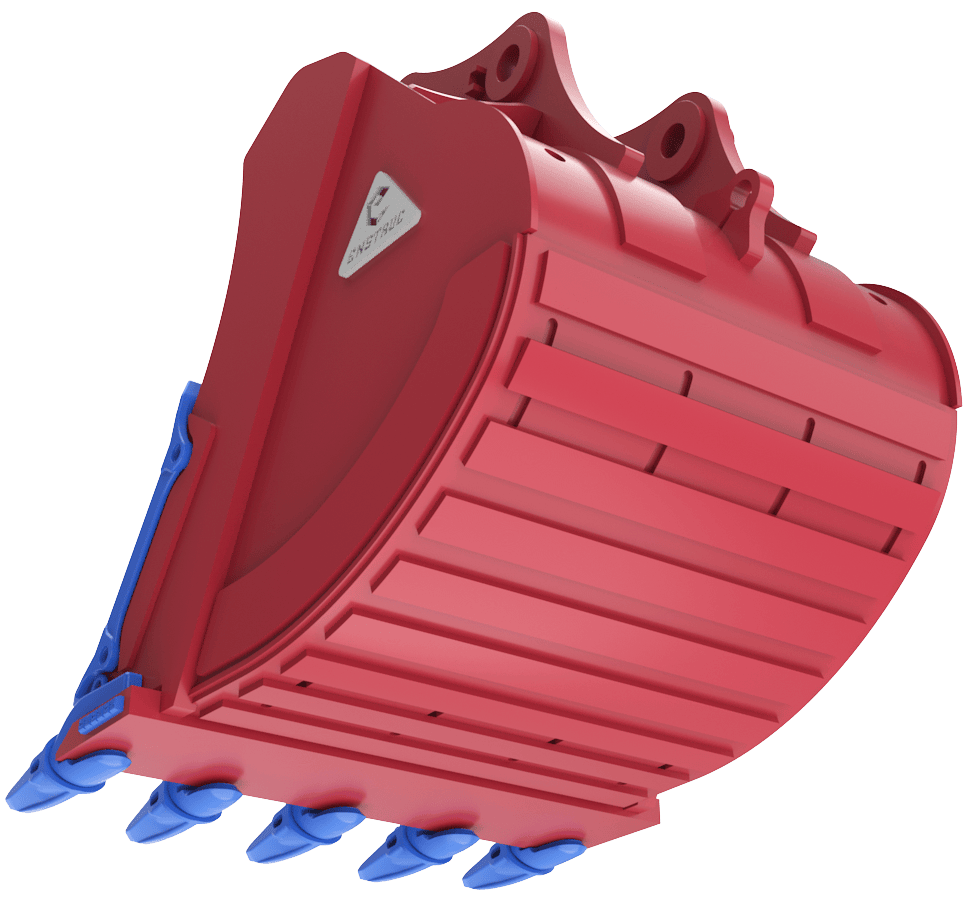

Enstruc quarry rock bucket with bottom wear strips for high-abrasion resistance

Specifications and sizes

View DataHide Data

Category	Part Number	Machine Class		Width		Capacity		Weight		Teeth
Category500	Part NumberHDS5464E48	Machine Class120,000 - 140,000 lbs	54 - 64 tonne	Width48 ''	1219 mm	Capacity3.00 yd3	2.29 m3	Weight		Teeth4
Category500	Part NumberHDS5464E54	Machine Class120,000 - 140,000 lbs	54 - 64 tonne	Width54 ''	1372 mm	Capacity3.50 yd3	2.68 m3	Weight		Teeth4
Category500	Part NumberHDS5464E60	Machine Class120,000 - 140,000 lbs	54 - 64 tonne	Width60 ''	1524 mm	Capacity4.00 yd3	3.06 m3	Weight		Teeth4
Category500	Part NumberHDS5464E72	Machine Class120,000 - 140,000 lbs	54 - 64 tonne	Width72 ''	1829 mm	Capacity4.75 yd3	3.63 m3	Weight		Teeth5
Category600	Part NumberHDS6472E60	Machine Class140,000 - 160,000 lbs	64 - 72 tonne	Width60 ''	1524 mm	Capacity4.30 yd3	3.29 m3	Weight8885 lbs	4029 kg	Teeth4
Category600	Part NumberHDS6472E66	Machine Class140,000 - 160,000 lbs	64 - 72 tonne	Width66 ''	1676 mm	Capacity4.75 yd3	3.63 m3	Weight9400 lbs	4263 kg	Teeth4
Category600	Part NumberHDS6472E72	Machine Class140,000 - 160,000 lbs	64 - 72 tonne	Width72 ''	1829 mm	Capacity5.25 yd3	4.01 m3	Weight9805 lbs	4447 kg	Teeth5
Category600	Part NumberHDS6472E84	Machine Class140,000 - 160,000 lbs	64 - 72 tonne	Width84 ''	2134 mm	Capacity6.25 yd3	4.78 m3	Weight10725 lbs	4864 kg	Teeth5
Category600	Part NumberHDS6472E96	Machine Class140,000 - 160,000 lbs	64 - 72 tonne	Width96 ''	2438 mm	Capacity8.00 yd3	6.12 m3	Weight11725 lbs	5317 kg	Teeth5
Category900	Part NumberHDS90136E60	Machine Class200,000 - 300,000 lbs	90 - 136 tonne	Width60 ''	1524 mm	Capacity6.89 yd3	5.27 m3	Weight		Teeth4
Category900	Part NumberHDS90136E72	Machine Class200,000 - 300,000 lbs	90 - 136 tonne	Width72 ''	1829 mm	Capacity7.50 yd3	5.73 m3	Weight		Teeth5
Category900	Part NumberHDS90136E84	Machine Class200,000 - 300,000 lbs	90 - 136 tonne	Width84 ''	2134 mm	Capacity9.65 yd3	7.38 m3	Weight		Teeth5
Category900	Part NumberHDS90136E96	Machine Class200,000 - 300,000 lbs	90 - 136 tonne	Width96 ''	2438 mm	Capacity10.95 yd3	8.37 m3	Weight		Teeth6

Severe Duty Quarry Excavator Buckets – FAQ

Which excavators are compatible with Enstruc severe duty quarry buckets?

Our heavy duty buckets fit quarry excavators in the 52 to 125 tonne operating weight class. Supported OEM models include:

Caterpillar: 374, 390, 395
Komatsu: PC600, PC700, PC1250
Hitachi: ZX670, ZX690, ZX890
Volvo: EC750, EC950
Liebherr: R 956, R 966, R 970
Hyundai: HX800, HX900
Develon / Doosan: DX800LC, DX1000LC

What materials and ground conditions are these buckets suited for?

Designed for severe quarry conditions such as:

Blasted and fragmented rock
Abrasive stone and gravel
Compacted mineral deposits
Heavy material loading and handling

Can I customise a severe duty bucket for my quarry?

Yes. Customisation options include:

Bucket size, width, and capacity adjustments
Wear plate thickness and materials
Lip shrouds, side cutters, and tooth systems
Pin-on or bolt-on mounting
Custom paint and fleet branding

What quality assurance processes do you follow?

Enstruc excavator buckets are produced under rigorous QA/QC, including:

Material certification and traceability
Weld inspection and dimensional verification
Non-destructive testing (NDT)
Final inspection reports provided

Do you offer worldwide delivery?

Yes. Enstruc ships buckets globally with appropriate export packaging and logistics support. Our export network covers Australia, Asia, Europe, North and South America, Africa, and the Middle East.

Who are your typical customers?

We supply buckets to quarry operators, equipment owners, contractors, OEMs, and procurement teams worldwide. Technical documentation and aftersales support are standard.

Do you support volume supply or contract manufacturing?

Yes. Enstruc offers batch production, private label programs, and Contract Manufacturing of buckets and attachments for large customers.

Do you offer buckets for other excavator classes?

Yes. Check out our full range:
