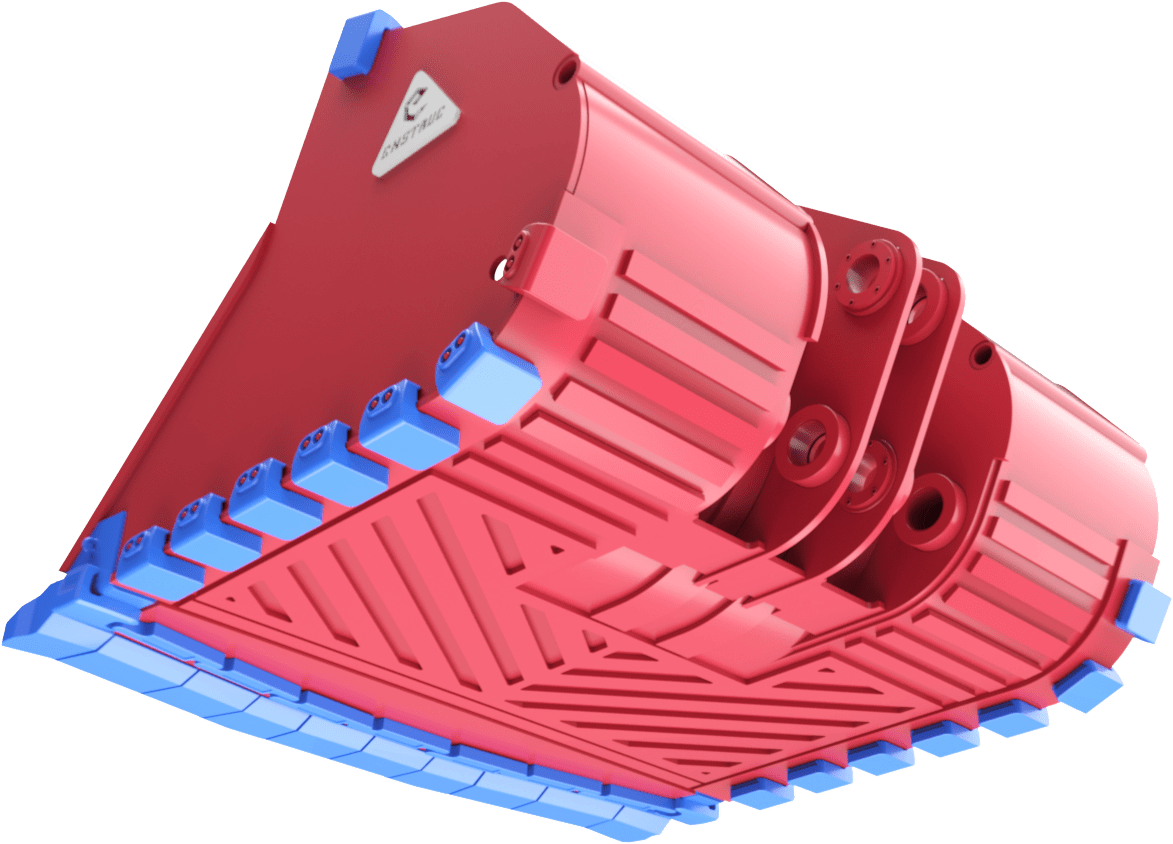

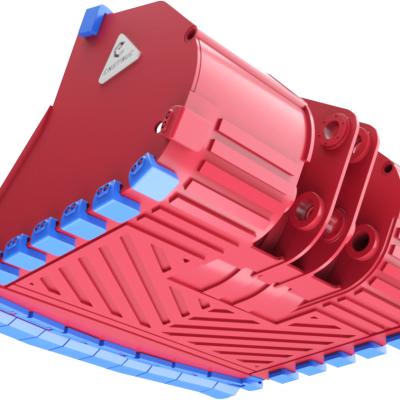

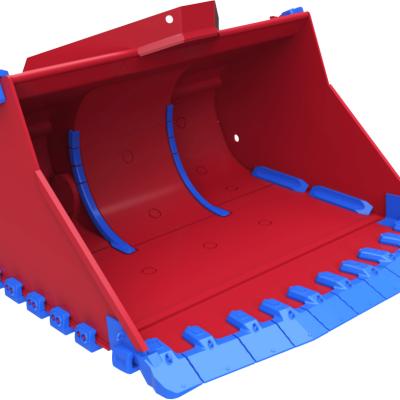

The Enstruc Mining LHD Rock Bucket is engineered for underground mines where abrasive ore, sharp fragmentation, and high breakout forces demand maximum durability. A high-strength bucket shell, abrasion-resistant floor, and advanced LHD wear protection allow operators to load fractured and blasted rock efficiently while extending service life in stopes and drawpoints.
Key Features
Reinforced LHD bucket withstands high-impact loading in abrasive ore
Heavy duty floor and solid single piece side walls extend life in rock conditions
High performance LHD lip system with cast corners and mechanical lip shrouds
Bolt-on heel shrouds and profile bars reduces maintenance time and cost
Bucket profile promotes fast filling, efficient mucking, and shorter cycle times
Full bottom herringbone wear liner extends floor life in heavy abrasion
Cast centre box protectors and internal corner gussets prevent weld wash
Fits mining LHDs from Sandvik, Epiroc, Caterpillar, Komatsu, and others
Get a Quote
Specifications and sizes
View DataHide Data
BUCKET CAPACITY
ATLAS COPCO
CATERPILLAR
SANDVIK
BUCKET CAPACITY2.5 - 4.8 yd3
1.91 - 3.67 m3
ATLAS COPCOST3.5 / ST7
CATERPILLARR1300
SANDVIKLH307
BUCKET CAPACITY4.4 - 7 yd3
3.36 - 5.35 m3
ATLAS COPCOST1030
CATERPILLARR1600
SANDVIKLH410 / LH490
BUCKET CAPACITY6.5 - 11 yd3
4.97 - 8.41 m3
ATLAS COPCOST14 / ST1530
CATERPILLARR1700
SANDVIKLH514
BUCKET CAPACITY9.5 - 15.25 yd3
7.26 - 11.66 m3
ATLAS COPCOST18
CATERPILLARR2900 / R3000
SANDVIKLH517 / LH621
Frequently Asked Questions
Hard-rock mucking, ore handling, development loading, production loading, and abrasive fragmentation.
This reinforced Mining LHD Rock Bucket has a high-strength shell, external herringbone floor wear liner with cast interlocking profile bars, internal wear liner, single piece side walls with grouser bars, mechanical LHD lip system, mechanical heel shrouds, cast centre box protectors, and cast internal corner fillets. LHD bucket wear packages can be configured to match rock type, abrasion level, and production targets.
Our underground loader rock buckets are compatible with Sandvik Toro and LH series, Epiroc Scooptram, Caterpillar R-series, Komatsu WX series, and other Mining LHDs up to 80 tonnes operating weight. Popular bogger models include Sandvik LH514, LH517, LH621, LH625; and Cat R1700, R2900, R3000.
Yes. GET choices include mechanical LHD lip systems, bolt-on LHD lip systems, and weld-on half arrow LHD lip systems.
Yes. LHD bucket width, internal volume, and wear layout can be customised to drift dimensions, ground conditions, and production targets.
Yes, we offer liner-less LHD buckets with a thickened floor for reduced maintenance.
Yes, we supply buckets with grade line protection. Ground support protection buckets with curved side walls safeguard ground support installed at grade line. They prevent costly repairs in the mining cycle.
Talk to our team
Share your Mining LHD model, ore type, material density, and production targets. We’ll recommend the best bucket configuration and provide a quotation.
