Mining excavatorFutura lip shrouds

Enstruc® Futura Miner Lip Shrouds are designed to protect the leading edge of quarry and mining excavator buckets.

These mining lip shrouds are engineered to distribute wear evenly across the shroud surface and are made with durable and wear-resistant alloys for maximum productivity.

Their profile, hardness, and toughness extend service wear life in the harshest mining conditions.

Size options

Key Features

Max wear protection for mining excavator lips
Advanced metallurgy & heat treatment process
Installed with hammerless pin & weld-on base
Extends the lifespan of mining excavator lips
Self-sharpening for increased lip penetration
Increased productivity with better material flow

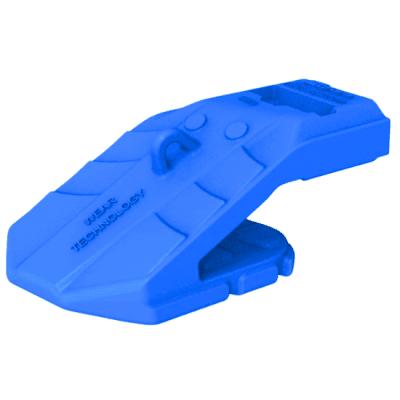

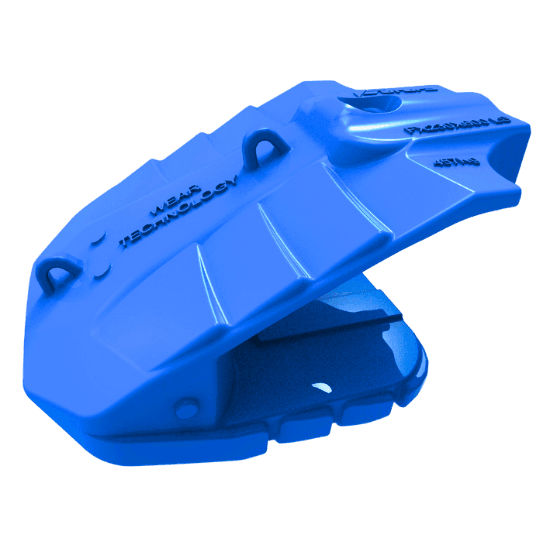

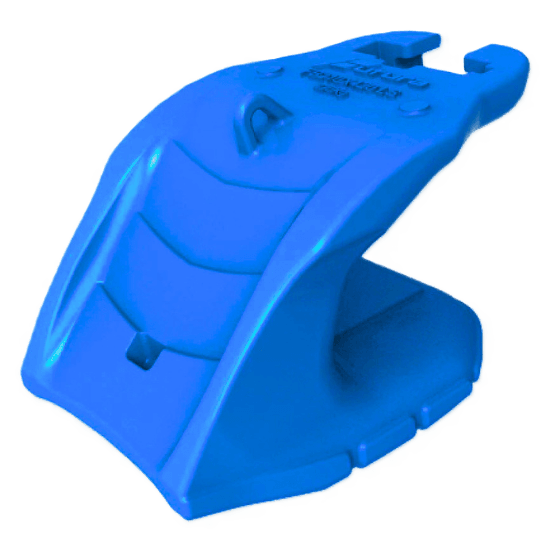

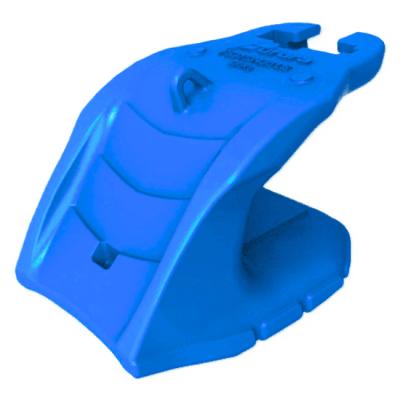

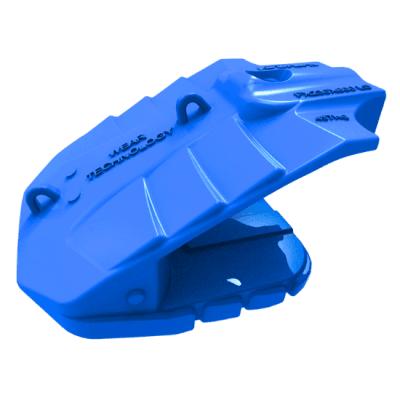

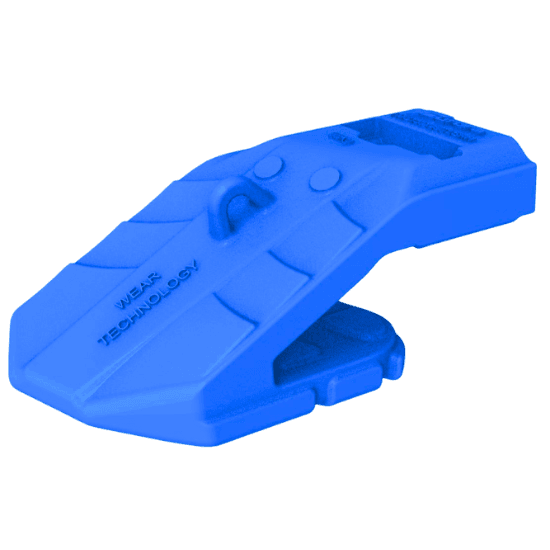

Optional Cat, Esco, and Sandvik style lip shrouds
Custom excavator lip shroud designs available

Quick Contact

Sending...

Uploading Files

Field is required

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Enstruc Wear Solutions | Mining excavator Futura lip shrouds 0

Enstruc Wear Solutions | Mining excavator Futura lip shrouds 1

Enstruc Wear Solutions | Mining excavator Futura lip shrouds 2

Enstruc Wear Solutions | Mining excavator Futura lip shrouds 3

Enstruc Wear Solutions | Mining excavator Futura lip shrouds 4

Enstruc Wear Solutions | Mining excavator Futura lip shrouds 5

Enstruc Wear Solutions | Mining excavator Futura lip shrouds 6

Enstruc Wear Solutions | Mining excavator Futura lip shrouds 7

Specifications and sizes

View DataHide Data

Shroud Style	Part Number	Alternative Part	Lip		Angle	Weight
Shroud StyleMechanical	Part NumberF70X240 LS	Alternative PartTAC 70X240-1B	Lip2.8 ”	70 mm	Angle30 Âº	Weight86 lbs	39 kg
Shroud StyleMechanical	Part NumberF90X245 LS	Alternative PartTAC 90X245-1A	Lip3.5 ”	90 mm	Angle30 Âº	Weight99 lbs	45 kg
Shroud StyleMechanical	Part NumberF90X320 LS	Alternative PartTAC 90X320-5	Lip3.5 ”	90 mm	Angle30 Âº	Weight170 lbs	77 kg
Shroud StyleMechanical	Part NumberF90X360 LS	Alternative PartTAC 90X360-2	Lip3.5 ”	90 mm	Angle30 Âº	Weight187 lbs	85 kg
Shroud StyleMechanical	Part NumberF90X390 LS	Alternative PartTAC 90X390-1	Lip3.5 ”	90 mm	Angle30 Âº	Weight194 lbs	88 kg
Shroud StyleMechanical	Part NumberF100X290 LS	Alternative PartTBC 100X290-3	Lip3.9 ”	100 mm	Angle30 Âº	Weight190 lbs	86 kg
Shroud StyleMechanical	Part NumberF100X320 LS	Alternative PartTBC 100X320-1B	Lip3.9 ”	100 mm	Angle30 Âº	Weight218 lbs	99 kg
Shroud StyleMechanical	Part NumberF100X375 LS	Alternative PartTBC 100X375-2	Lip3.9 ”	100 mm	Angle30 Âº	Weight243 lbs	110 kg
Shroud StyleMechanical	Part NumberF100X410 LS	Alternative PartTBC 100X410-3	Lip3.9 ”	100 mm	Angle30 Âº	Weight271 lbs	123 kg
Shroud StyleMechanical	Part NumberF100X430 LS	Alternative PartTBC100X430-1	Lip3.9 ”	100 mm	Angle30 Âº	Weight287 lbs	130 kg
Shroud StyleMechanical	Part NumberF120X330 LS	Alternative PartTBC 120X330-1A	Lip4.7 ”	120 mm	Angle30 Âº	Weight260 lbs	118 kg
Shroud StyleMechanical	Part NumberF120X350 LS	Alternative PartTBC 120X350-3A	Lip4.7 ”	120 mm	Angle30 Âº	Weight254 lbs	115 kg
Shroud StyleMechanical	Part NumberF120X375 LS	Alternative PartTBC 120X375-1	Lip4.7 ”	120 mm	Angle30 Âº	Weight309 lbs	140 kg
Shroud StyleMechanical	Part NumberF120X410 LS	Alternative PartTBC120X410-4	Lip4.7 ”	120 mm	Angle30 Âº	Weight331 lbs	150 kg
Shroud StyleMechanical	Part NumberF120X420 LS	Alternative PartTBC120X420-1	Lip4.7 ”	120 mm	Angle30 Âº	Weight282 lbs	128 kg
Shroud StyleMechanical	Part NumberF120X440 LS	Alternative PartTBC120X440-1B	Lip4.7 ”	120 mm	Angle30 Âº	Weight287 lbs	130 kg
Shroud StyleMechanical	Part NumberF120X535 LS	Alternative PartTBC120X535-3	Lip4.7 ”	120 mm	Angle30 Âº	Weight359 lbs	163 kg
Shroud StyleMechanical	Part NumberF140X420 LS	Alternative PartTBC140X420-1A	Lip5.5 ”	140 mm	Angle30 Âº	Weight401 lbs	182 kg
Shroud StyleMechanical	Part NumberF140X465 LS	Alternative PartTBC140X465-3A	Lip5.5 ”	140 mm	Angle30 Âº	Weight500 lbs	227 kg
Shroud StyleMechanical	Part NumberF140X490 LS	Alternative PartTBC140X490-1B	Lip5.5 ”	140 mm	Angle30 Âº	Weight507 lbs	230 kg
Shroud StyleMechanical	Part NumberF140X575 LS	Alternative PartTBC140X575-1	Lip5.5 ”	140 mm	Angle30 Âº	Weight509 lbs	231 kg
Shroud StyleMechanical	Part NumberF160X430 LS	Alternative PartTBC160X430-1	Lip6.3 ”	160 mm	Angle30 Âº	Weight403 lbs	183 kg
Shroud StyleMechanical	Part NumberF160X450 LS	Alternative PartTBC160X450-1	Lip6.3 ”	160 mm	Angle30 Âº	Weight529 lbs	240 kg
Shroud StyleMechanical	Part NumberF230X430 LS	Alternative PartTCCF130-28	Lip9.1 ”	230 mm	Angle30 Âº	Weight853 lbs	387 kg
Shroud StyleMechanical	Part NumberF230X600 LS	Alternative PartTCCF130-16	Lip9.1 ”	230 mm	Angle30 Âº	Weight1003 lbs	455 kg
Shroud StyleMechanical	Part NumberF245X410 LS	Alternative PartTCCF145-5	Lip9.6 ”	245 mm	Angle30 Âº	Weight763 lbs	346 kg
Shroud StyleMechanical	Part NumberF245X570 LS	Alternative PartTCCF145-8	Lip9.6 ”	245 mm	Angle30 Âº	Weight1041 lbs	472 kg
